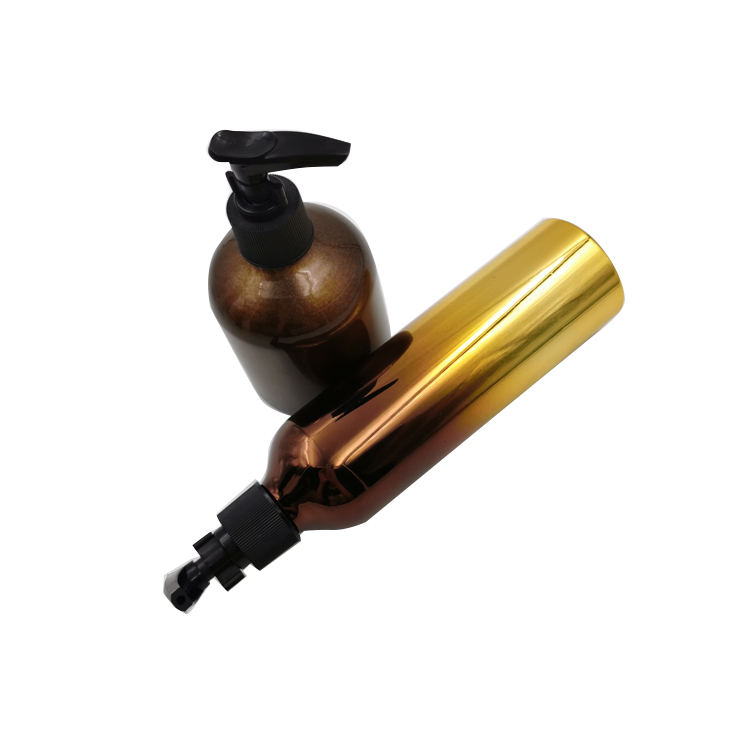

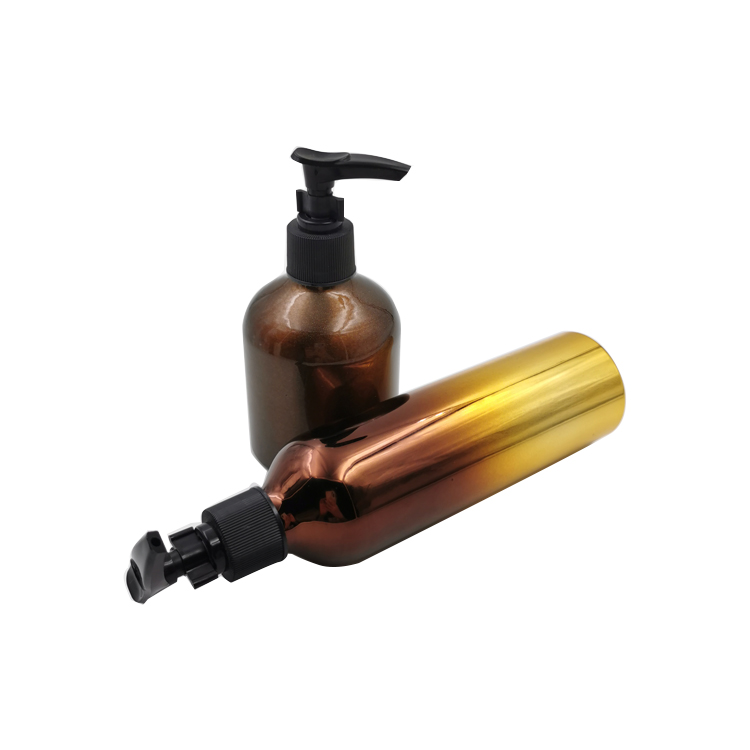

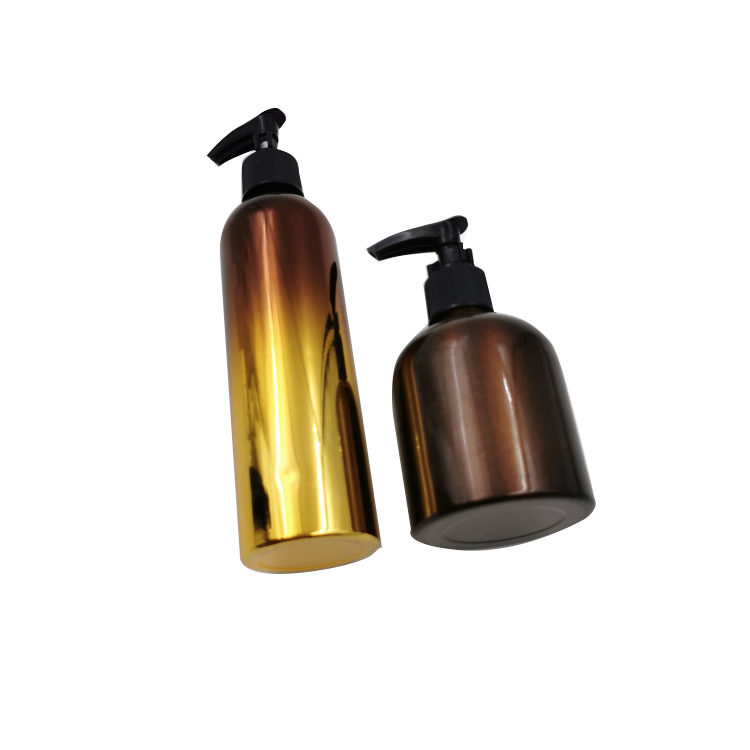

The material of the aluminum bottle is aluminum. It is environmentally friendly and odorless
The aluminum bottle is easy to carry when traveling, and also great for home use.
You can put skin cream, eye cream, etc. cosmetics in the bottle.
The design is very simple and generous. The color is very classical and the design is very light and handy. Jiangyin beauty packaging is the professional OEM customise aluminum bottle manufacturer, sell low MOQ aluminum bottle, welcome to consult hectograph/silk screen printing aluminum bottle optimal price.
Professional packaging.
Small and convenient.
Easy boarding.
Easy and comfortable.
Recyclable.
Environmental tasteless.
Material: aluminum
Shape: round shape
Capacity:5-500ml can be made
Diameter:15/19/20/25/28/33/35/40/66mm
Neck:crimp-on/screw-on version
Surface: Hectograph/Silkscreen printing/Electro-plating and UV coating
USE for: bottle
MOQ:10000PCS
Price: FOB shanghai $0.3-1/pc
Use:liquid,cream,lotion
Make-up packaging.
24-hour Online consultation.
Damage compensation
Jiangyin beauty packaging is the professional aluminum bottle manufacturer, buy colourful tasteless aluminum bottle at factory price.
Silkscreen printing, custom sticker, hot stamping, matte, frost, offset printing
At present, the market on a large scale for beverage cans, but can the open positions in the process of storage and transportation are easy to be polluted, there is the food hygiene safety hidden trouble, and unable to realize again sealing, easy to cause the bottle beverage pollution, at the same time when the time did not drink so troublesome to carry, can only be discarded, usually resulting in waste. Jiangyin beauty packaging is the professional aluminum bottle manufacturer, buy colourful tasteless aluminum bottle at factory price.
For this reason, in Japan and South Korea, aluminum bottles and can have been widely used in beverage packaging instead of pop cans. These thin-walled aluminum bottles and cans are generally made by Daiwa, UCC, and Takeuchi stamping companies. The aluminum cans and cans are sealed with disposable metal threaded caps with plastic pads inside. This sealing method is not reliable for products requiring high-temperature disinfection. At the same time, users are worried about hand scratches when opening. Besides, the shoulder surface of the bottle is flat or curved, which expands outward. Jiangyin beauty packaging is the professional OEM customise aluminum bottle manufacturer, sell low MOQ aluminum bottle, welcome to consult hectograph/silk screen printing aluminum bottle optimal price.
In order to solve the above technical problems existing in the existing technology, the utility model provides an aluminum bottle and tank with novel structure which has the advantages of easy to pull can, meets the requirements of high temperature disinfection, and guarantees the sanitary safety of bottle mouth and easy to pull lid in the process of storage and transportation.
The invention relates to an aluminum bottle and can with novel structure, which comprises a bottle body, an inner sealing cover and an outer sealing cover; Among them, the bottle body is an aluminum bottle and the inner sealing cover is easy to pull cover. The easy to pull cover covers the bottle mouth of the bottle body, and the circumferential edge is sealed and connected with the circumferential edge of the bottle mouth. The outer sealing cover is a disposable screw cap, and the edge surface of the bottle mouth of the bottle body is provided with external threads. The screw cap covers the bottle mouth and easy to pull the cover, and is connected with the external thread sealing.
Furthermore, the bottle mouth and external screw thread are pressed and formed with the bottle body, and the easy pull cap is connected with the bottle mouth winding seal of the bottle body.
Further, the threaded cover is a plastic cover or a metal cover.
Further, the bottle’s body is composed of a one-piece bottle body and a bottle shoulder, and the surface of the bottle shoulder is a concave and curved surface.
Furthermore, the height ratio of the bottle body to the bottle shoulder is 1:1 ~ 7:3.
Further, the height of the bottle body is 131 ~ 200mm, the height of the bottle body is 76 ~ 150mm, the height of the bottle shoulder is 65 ~ 120mm, and the effective capacity of the bottle body is 300 ~ 550ml, the inner diameter of the bottle mouth is 24 ~ 46mm, the inner diameter of the bottle body is 45 ~ 70mm, and the distance between the outer thread and the bottle mouth is 3 ~ 10mm.
The utility model by adopting the above technical scheme, not only has the advantages of cans, and also can meet the need of high-temperature disinfection products reliability requirements, at the same time guarantee the bottle during storage, transportation, and easy pull cover health and safety, can guarantee on aluminum bottles after the first open beverage bottle can be carried out when a didn’t drink the second seal, and the use of disposable plastic screw cover completely eliminates the people hand when opening a one-off metal threaded cover scratches psychological concerns, drinking high safety. Jiangyin beauty packaging is the professional OEM customise aluminum bottle manufacturer, sell low MOQ aluminum bottle, welcome to consult hectograph/silk screen printing aluminum bottle optimal price.
In order to make the purpose, technical scheme, and advantages of the utility model more clear, the following is a further detailed description of the utility model. It should be understood that the specific embodiment described herein is only used to explain the utility model and is not used to define the utility model.
The embodiment of the utility model provides an aluminum bottle and can with novel structure, including a bottle body 1, an inner sealing cover and an outer sealing cover. Among them, the bottle body 1 is an aluminum bottle and can be made of aluminum material covered with film and produced by a mechanical stamping, stretching and rolling, or aluminum material not covered with film and produced by mechanical stamping, stretching and rolling is sprayed with anti-corrosion coating. The inner sealing cover is easy to pull cover 2. The easy to pull cover 2 covers bottle mouth 11 of bottle body 1, and the circumferential edge is sealed and connected with the circumferential edge of bottle mouth 11. For example, easy to pull cover 2 is integrated with bottle mouth 11 of bottle body 1; The outer sealing cover is disposable screw cap 3, and the disposable screw cap 3 is a plastic cap. The peripheral surface of bottle mouth 11 of the bottle body 1 is provided with external screw thread 12, and the bottle mouth 11 and external screw thread 12 is formed by stamping together with the bottle body 1. When assembling, the screw cap 3 covers bottle mouth 11 and easy pull cap 2, and is sealed connected with external thread 12.
Aluminum bottles described in this way, the utility model has the advantages of cans, and also can meet the need of high-temperature disinfection products reliability requirements, at the same time ensure bottle 11 in the process of storage, transportation, and easy pull cover health and safety of 2, can guarantee on aluminum bottles after 11 in the first time open bottle beverage can be carried out when a didn’t drink the second seal, and the use of disposable plastic screw cap 3 completely eliminates the people hand when opening a one-off metal threaded cover scratches psychological concerns, drinking high safety. Jiangyin beauty packaging is the professional OEM customise aluminum bottle manufacturer, sell low MOQ aluminum bottle, welcome to consult hectograph/silk screen printing aluminum bottle optimal price.
Described as an optimization of the utility model, the bottle 1 by the body of a integrated 13 and 14 a bottle shoulder, as described in the surface of the bottle shoulder 14 is inward concave, curved curved surface, and the bottle height of 13 and 14 bottles of shoulder ratio of 1:1 ~ 7:3, and the height of the bottles 1 to 131 ~ 200 mm, the height of the bottle, 13 of 76 ~ 150 mm, the height of the bottle shoulder 14 to 65 ~ 120 mm, and 1 effective capacity of 300 ~ 550 ml bottle, bottle the inner diameter of the 11 of 24 ~ 46 mm, inner diameter of the bottle, 13 for 45 ~ 70 mm, The distance between the external thread 12 and bottle mouth 11 is 3 ~ 10mm.
The height of bottle 1 is 131mm, the height of bottle 13 is 76mm, the height of bottle shoulder 14 is 65mm, and the effective capacity of bottle 1 is 300ml, the inner diameter of bottle mouth 11 is 46mm, the inner diameter of bottle body 13 is 60mm, and the distance between the outer thread 12 and bottle mouth 11 is 3-10mm.
The height of bottle 1 is 131mm, the height of bottle 13 is 76mm, the height of bottle shoulder 14 is 65mm, and the effective capacity of bottle 1 is 330ml, the inner diameter of bottle mouth 11 is 38mm, the inner diameter of bottle body 13 is 66mm, and the distance between the outer thread 12 and bottle mouth 11 is 3-15mm.
The height of bottle 1 is 155mm, the height of bottle 13 is 90mm, the height of bottle shoulder 14 is 65mm, the effective capacity of bottle 1 is 400ml, the inner diameter of bottle mouth 11 is 46mm, the inner diameter of bottle body 13 is 66mm, and the distance between the external thread 12 and bottle mouth 11 is 5-10mm.
In this way, the aluminum bottle and can adopts the indented and curved bottle shoulder 14, which is more convenient to hold and not easy to slip off. Besides, the bottle body 1, which is composed of bottle body 13, has a more beautiful appearance and a higher grade. Jiangyin beauty packaging is the professional OEM customise aluminum bottle manufacturer, sell low MOQ aluminum bottle, welcome to consult hectograph/silk screen printing aluminum bottle optimal price.
Of course, the disposable screw cap 3 of the aluminum bottle and can be a plastic cap or a metal cap.
The above content is a further detailed description of the utility model based on the specific optimization technology scheme, and the specific implementation of the utility model cannot be considered limited to these descriptions. For ordinary technical personnel in the technical field of the utility model, certain simple deduction or replacement can be made without breaking away from the conception of the utility model, all of which shall be regarded as belonging to the protection scope of the utility model. Jiangyin beauty packaging is the professional aluminum bottle manufacturer, buy colourful tasteless aluminum bottle at factory price.
